Based on service, quality for survival, science and technology for development
Crystal ResonatorOscillatorVCXOTCXOOCXO
Quartz crystal resonator is a passive frequency component made of piezoelectric effect of quartz crystal. It is used to produce the reference frequency of the circuit with IC and other components. HCI can provide a wide range of package sizes and frequency points and precision products, widely used in communications, industrial control, IT, medical, precision instruments and military and other fields.

Product Photo

HCI PN

Package[mm]

Nominal Frequency

Tolerances (@+25°C)

Operating temperature

Environmental Compliance

SPEC FILE

    1. X49ST2
    2. X49ST2
    3. HC-49/S (11.0 x 4.6)
    4. 3MHz~80MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. X49ST3
    2. X49ST3
    3. HC-49/S (11.0 x 4.6)
    4. 3MHz~80MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±20ppm /-40℃～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.

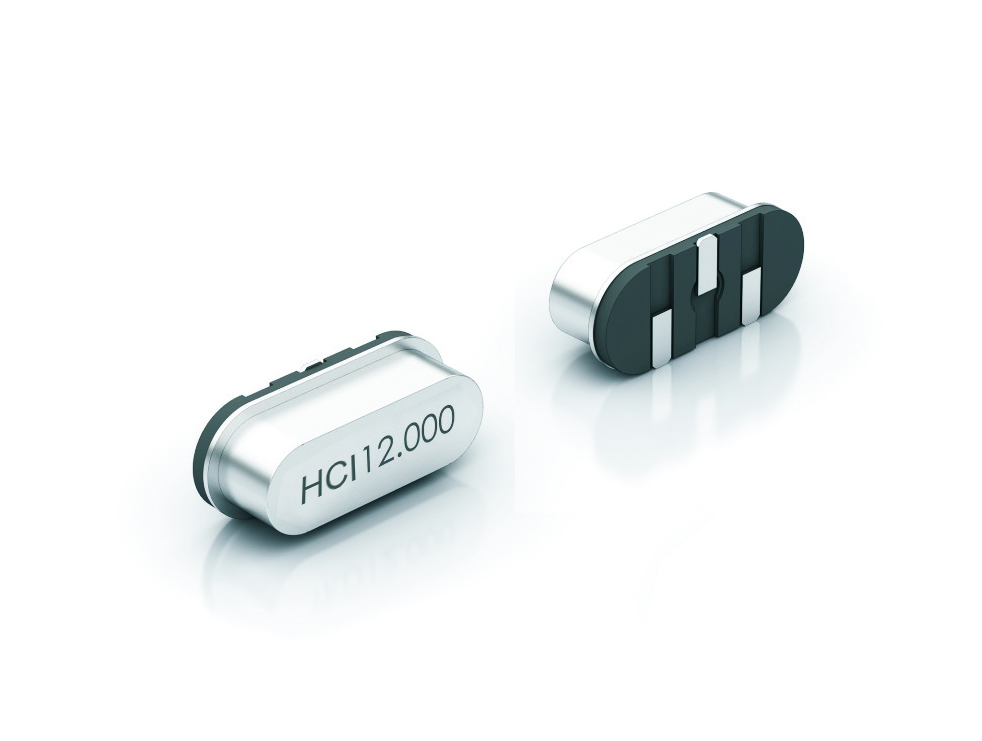

    1. X49SS2
    2. X49SS2
    3. HC-49/SMD (11.0 x 4.6)
    4. 3MHz~80MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±20ppm /-40℃～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. X49UT2
    2. X49UT2
    3. HC-49/U （11 x 13.5）
    4. 1.8432MHz ~ 100MHz
      3rd OT — 35.0 to 100MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XUM5T2
    2. XUM5T2
    3. UM-5 （8 x 5.8）
    4. 1.8432MHz ~ 100MHz
      3rd OT — 35.0 to 100MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XUM1T2
    2. XUM1T2
    3. UM-1 （8 x 8）
    4. 12MHz ~ 35MHz
      3rd OVERTONE
      40MHz ~ 100MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±20ppm /-40℃～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC10M4
    2. XC10M4
    3. 1.2 x 1.0
    4. 26MHz-96MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC11M4
    2. XC11M4
    3. 1.6 x 1.2
    4. 24MHz ~ 60MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC21M4
    2. XC21M4
    3. 2.0 x 1.6
    4. 16MHz ~ 60MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃～85℃
      *Please contact us about up to +105
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC22M4
    2. XC22M4
    3. 2.5 x 2.0
    4. 12MHz ~ 60MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃～85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC32M4
    2. XC32M4
    3. 3.2 x 2.5
    4. 11MHz ~ 60MHz
      3rd OVERTONE
      54MHz ~ 100MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±15ppm /-30℃～85℃
      ±20ppm /-40℃～85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.

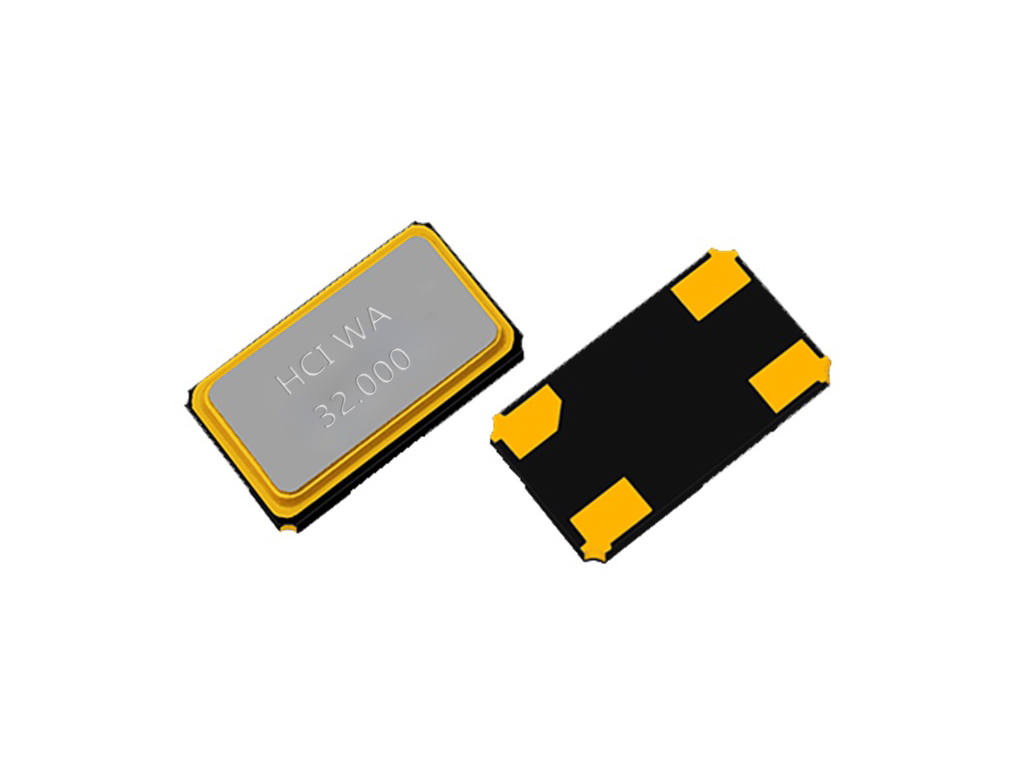

    1. XC53M4
    2. XC53M4
    3. 5.0 x 3.2(4pads）
    4. 8MHz ~ 55MHz
      3rd OVERTONE
      30MHz ~ 48MHz
      48MHz～150MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±15ppm /-30℃～85℃
      ±20ppm /-40℃～85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC63M4
    2. XC63M4
    3. 6.0 x 3.5
    4. 8MHz ~ 60MHz
      3rd OVERTONE
      30MHz ~ 48MHz
      48MHz～150MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±15ppm /-30℃～85℃
      ±30ppm /-40℃～85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.

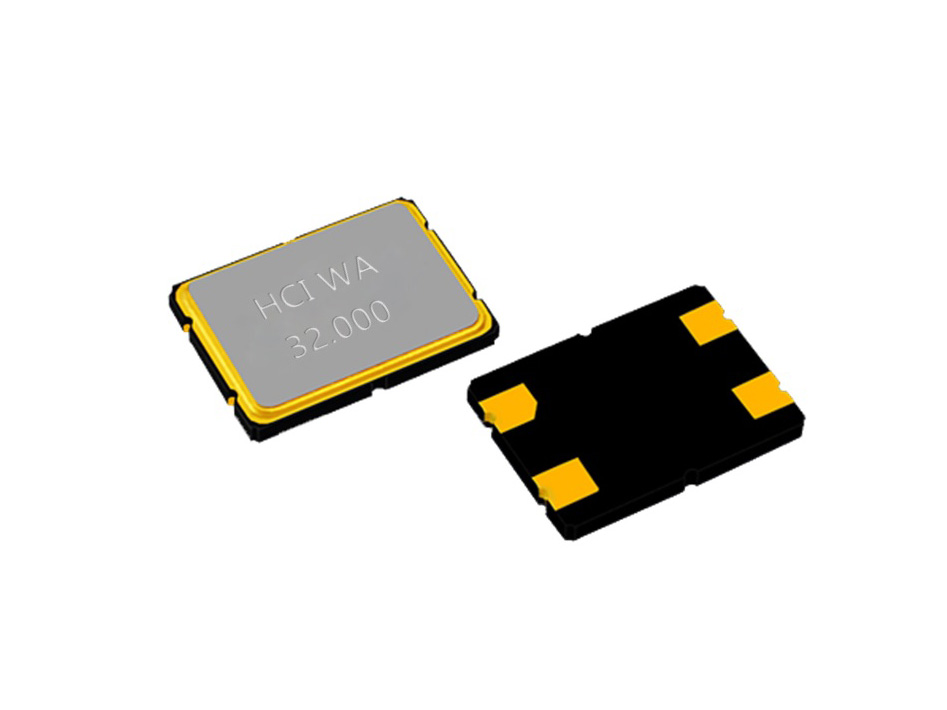

    1. XC75M4
    2. XC75M4
    3. 7.0 x 5.0
    4. 6MHz ~ 60MHz
      24MHz~40MHz
      3rd OVERTONE
      40MHz~150MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±15ppm /-30℃～85℃
      ±20ppm /-40℃～85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.

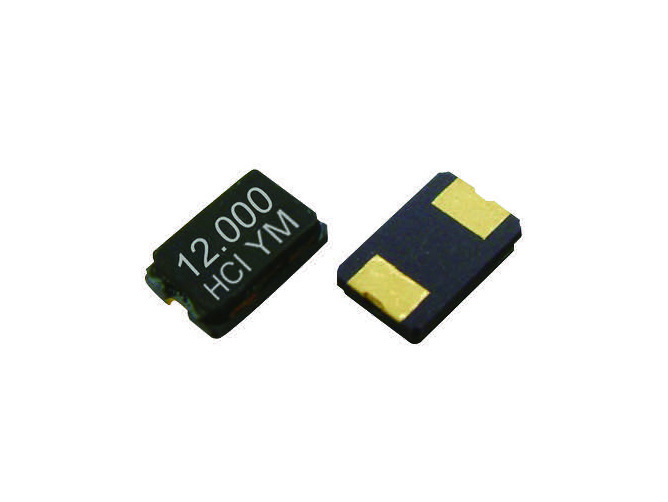

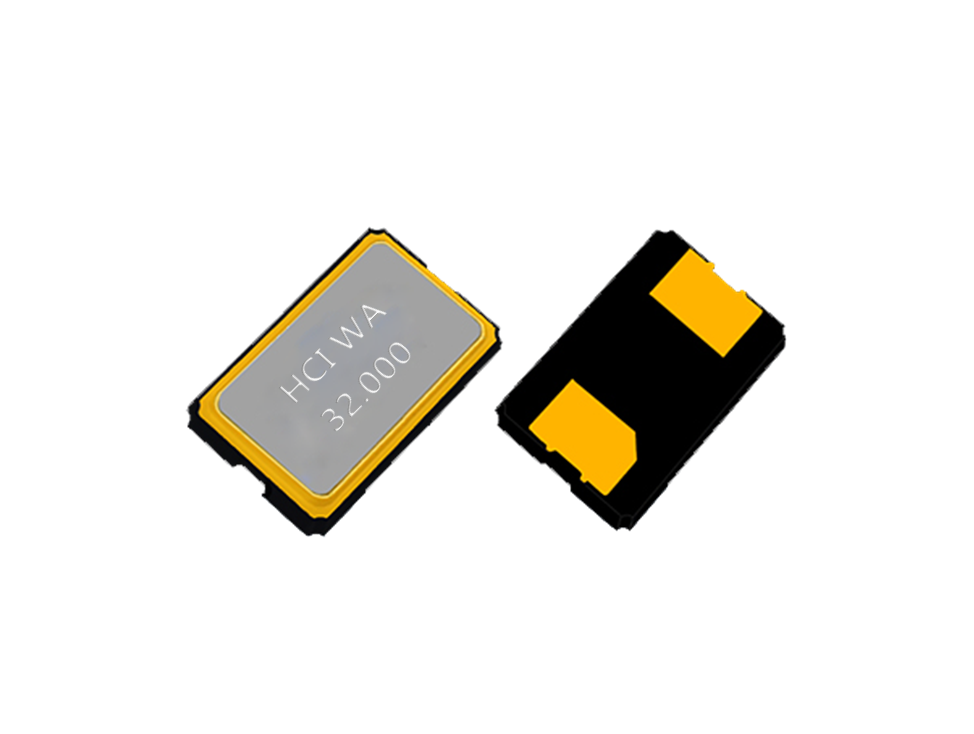

    1. XC53M2
    2. XC53M2
    3. 5.0 x 3.2(2pads）
    4. 8MHz ~ 55MHz
      3rd OVERTONE
      30MHz ~ 48MHz
      48MHz～150MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±15ppm /-30℃～85℃
      ±20ppm /-40℃～85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC53G2
    2. XC53G2
    3. 5.0 x 3.2（GLASS 2PINS)
    4. 8MHz ~ 50MHz*
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±15ppm /-30℃～85℃
      ±20ppm /-40℃～85℃
      *Please contact us about up to +125
    7. ▪ RoHS compliant by exemption
      ▪ HALOGEN-FREE

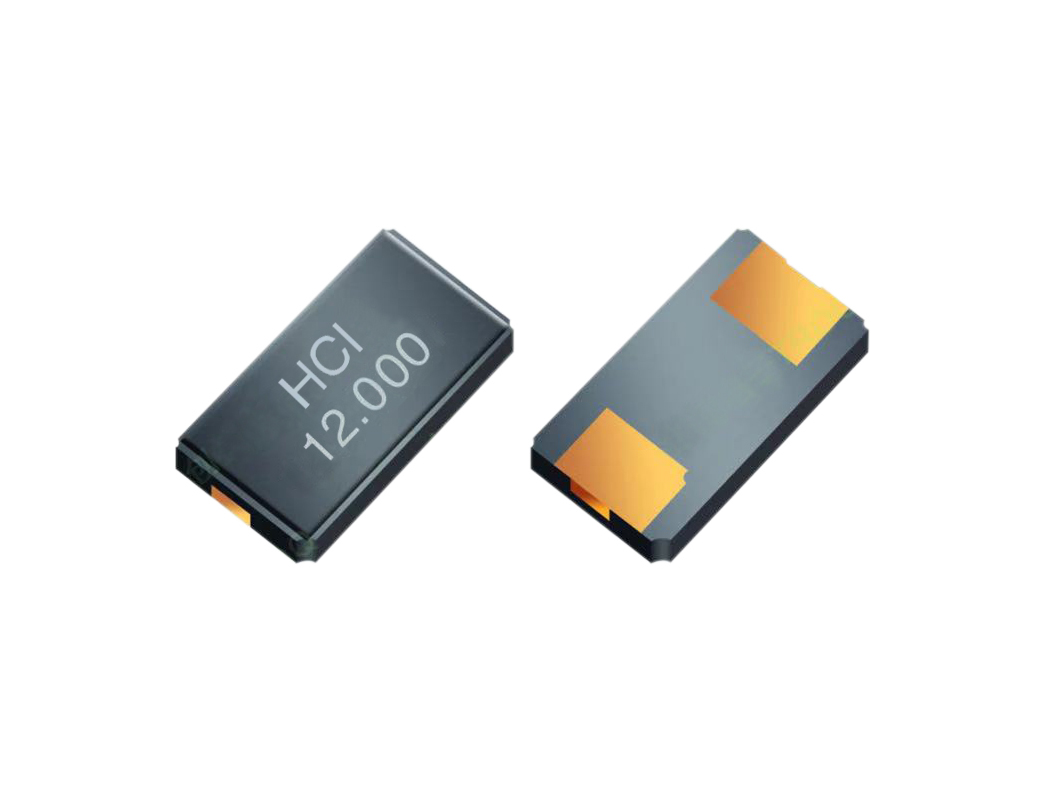

    1. XC63G2
    2. XC63G2
    3. 6.0 x 3.5（GLASS 2PINS)
    4. 8MHz ~ 50MHz*
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±15ppm /-30℃～85℃
      ±20ppm /-40℃～85℃
      *Please contact us about up to +125
    7. ▪ RoHS compliant by exemption
      ▪ HALOGEN-FREE
    1. X49SS3
    2. X49SS3
    3. HC-49/SMD (11.0 x 4.6)
    4. 3MHz~80MHz
    5. ±10 to±50 ppm(others available as well)
    6. ±10ppm /-20 ~ +70℃
      ±30ppm /-40～85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance up to SVHCs 201 verfied, contineously monitored.
      ▪ Parts do not contain Phthalates or PVC
      ▪ Parts do not contain PFOS/PFOA
