Crystal Resonator Oscillator VCXO TCXO OCXO

Compared with the conventional quartz crystal oscillator, THE VCXO VCC provides a control voltage input pin. By adjusting the control voltage, the output frequency deviation can be adjusted accordingly. HCI offers a wide range of package sizes and frequency point, frequency difference and output types, which are widely used in communications, precision instruments and military industries.

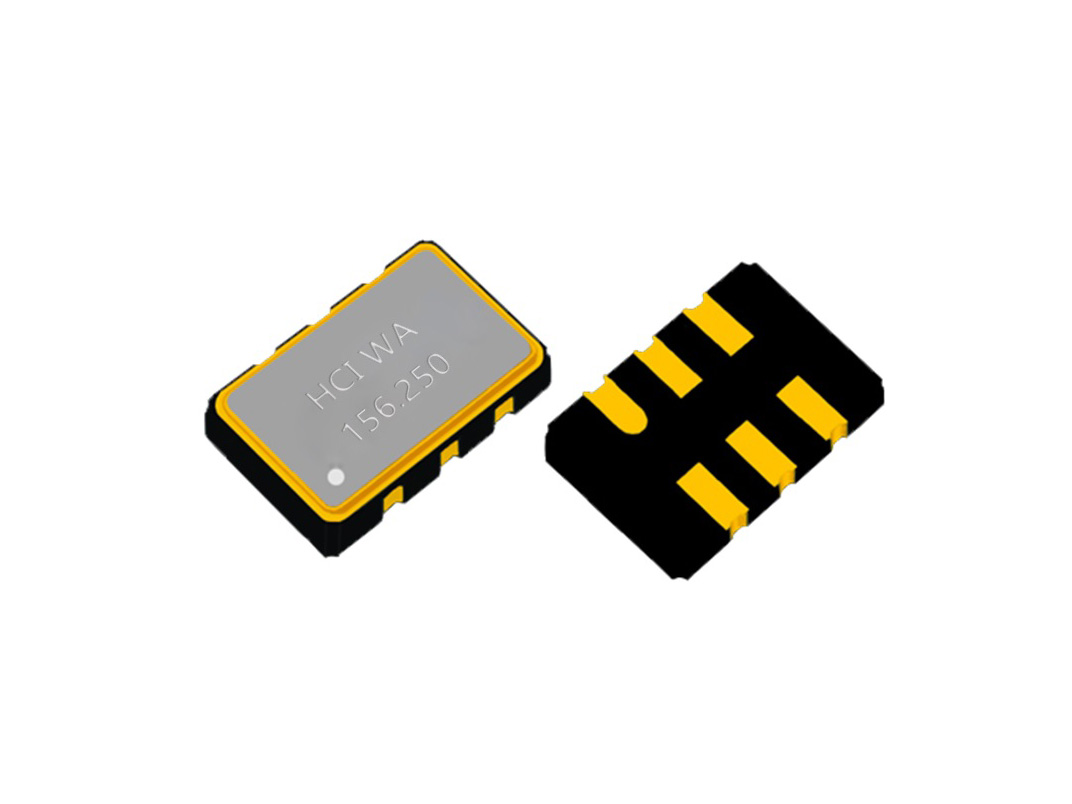

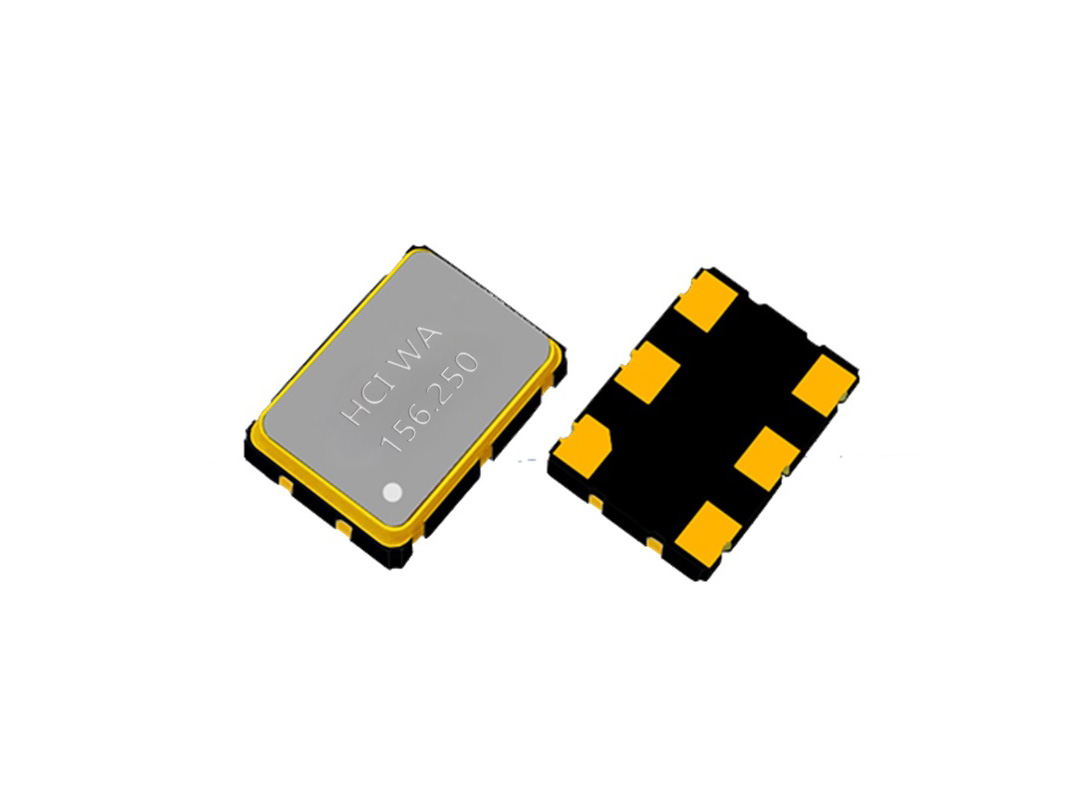

Product Photo

HCI PN

Package[mm]

Output

Frequency Range

Supply voltages

Operating temperature

Environmental Compliance

SPEC FILE

2. VC32H4
3. 3.2 x 2.5
4. HCMOS
5. 10MHz ~ 250MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC32H6
3. 3.2 x 2.5
4. HCMOS
5. 10MHz ~ 250MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC53H6
3. 5.0 x 3.2
4. HCMOS
5. 15MHz ~ 250MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC75H6
3. 7.0 x 5.0
4. HCMOS
5. 15MHz ~ 250MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC32D6
3. 3.2 x 2.5
4. LVDS
5. 10MHz ~ 1500MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC53D6
3. 5.0 x 3.2
4. LVDS
5. 10MHz ~ 1500MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC75D6
3. 7.0 x 5.0
4. LVDS
5. 10MHz ~ 1500MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC32P6
3. 3.2 x 2.5
4. PECL / LVPECL
5. 10MHz ~ 1500MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC53P6
3. 5.0 x 3.2
4. PECL / LVPECL
5. 15MHz ~ 2100MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. VC75P6
3. 7.0 x 5.0
4. PECL / LVPECL
5. 15MHz ~ 2100MHz
6. 1.8V to 3.3V
7. ±20 to ±100ppm available
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃,
  Automotive –40 ℃~ +125℃ (AEC_Q200 compliant)
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.

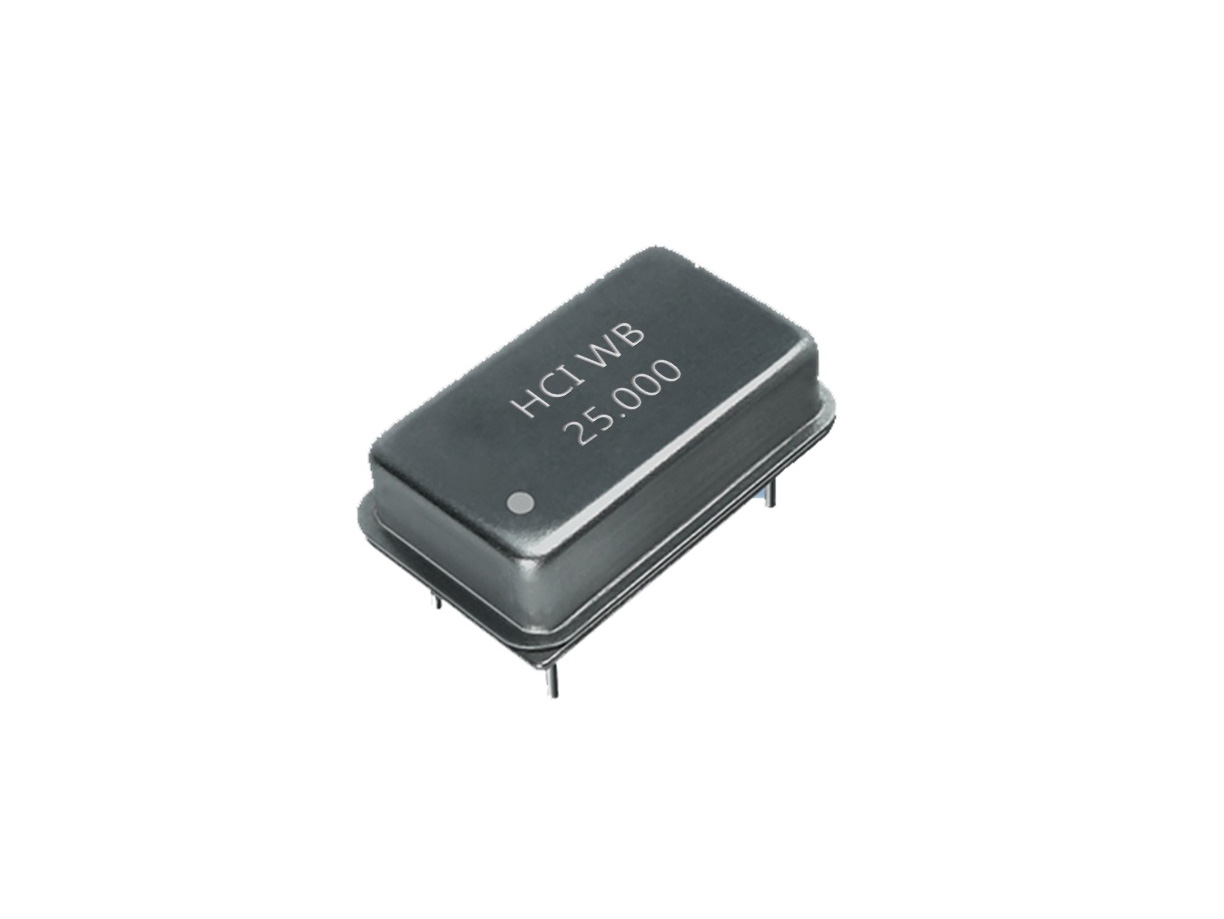

2. VD14S4
3. DIP14(20 x 13)
4. Sine Wave
5. 10MHz ~ 1500MHz
6. 3.3V and 5.0V
7. ±25, ±50 and ±100ppm
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃
8. RoHS compliant

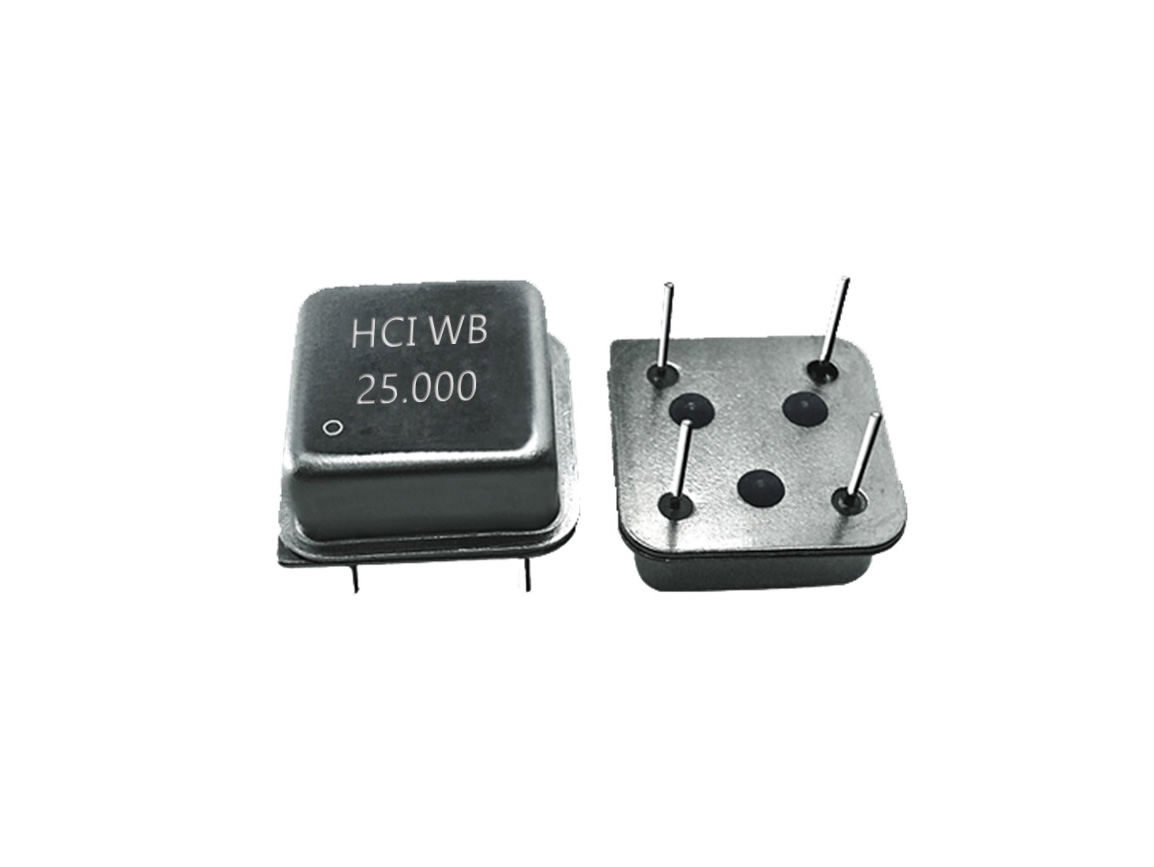

2. VD08S4
3. DIP8(13 x 13)
4. Sine Wave
5. 10MHz ~ 1500MHz
6. 3.3V and 5.0V
7. ±25, ±50 and ±100ppm
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃
8. RoHS compliant

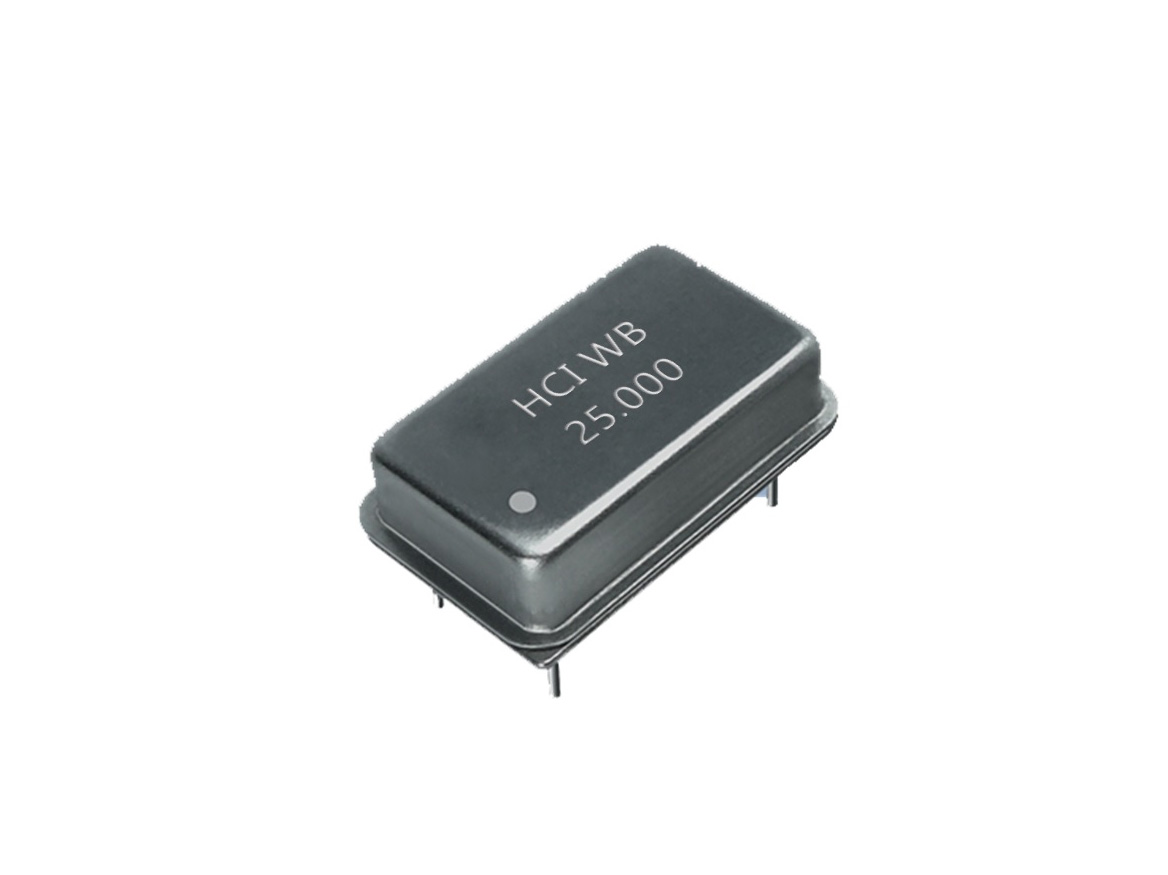

2. VD14H4
3. DIP14(20 x 13)
4. HCMOS
5. 10MHz ~ 1500MHz
6. 3.3V and 5.0V
7. ±25, ±50 and ±100ppm
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃
8. RoHS compliant

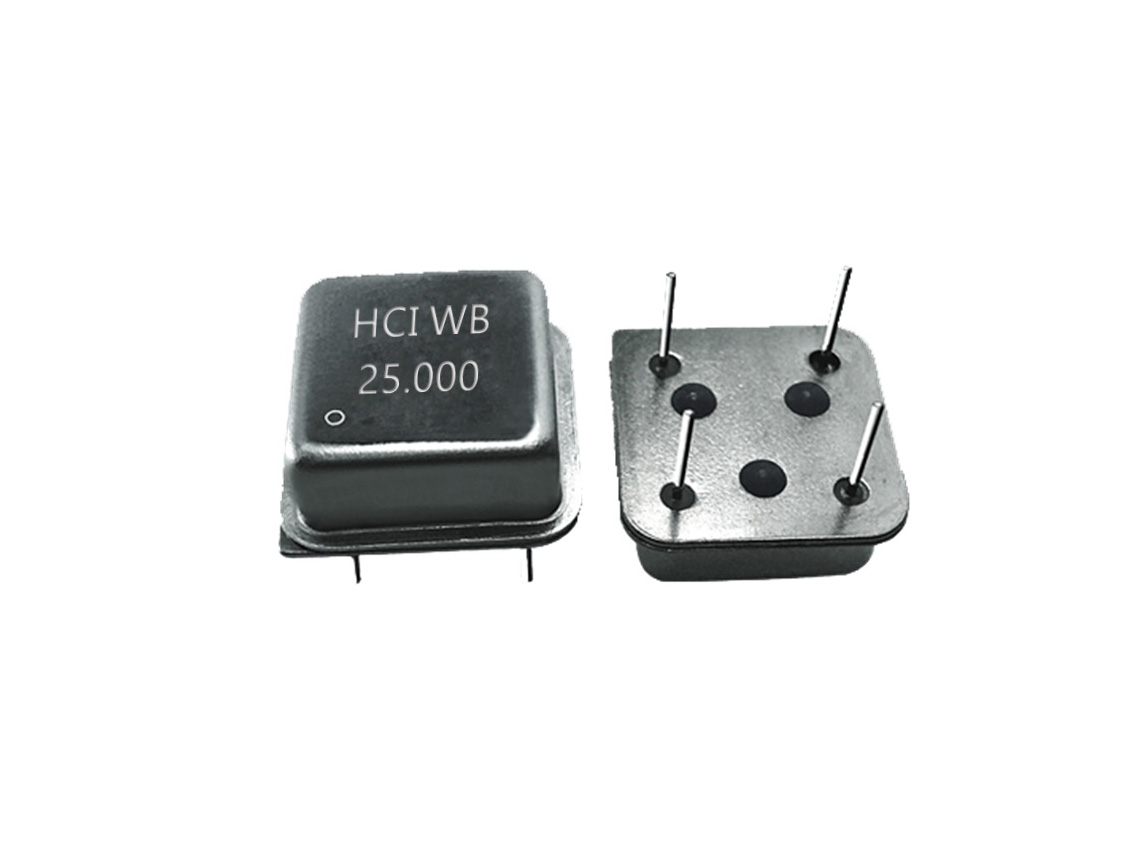

2. VD08H4
3. DIP8(13 x 13)
4. HCMOS
5. 10MHz ~ 1500MHz
6. 3.3V and 5.0V
7. ±25, ±50 and ±100ppm
  Common –10℃ ~ +70℃, Industiral –40℃ ~ +85℃
8. RoHS compliant
