Crystal Resonator Oscillator VCXO TCXO OCXO

TCXO temperature complementary crystal oscillator is a kind of high precision crystal oscillator whose frequency and temperature characteristics are kept nearly flat by means of temperature-load compensation circuit. Its frequency stability can reach less than 1PPM and achieve the smallest possible size. HCI offers pressure-controlled and non-pressure-controlled products in a variety of sizes, frequency points, frequency stability and output types. Widely used in communication and navigation, mobile terminals, precision instruments and military industry and other fields.

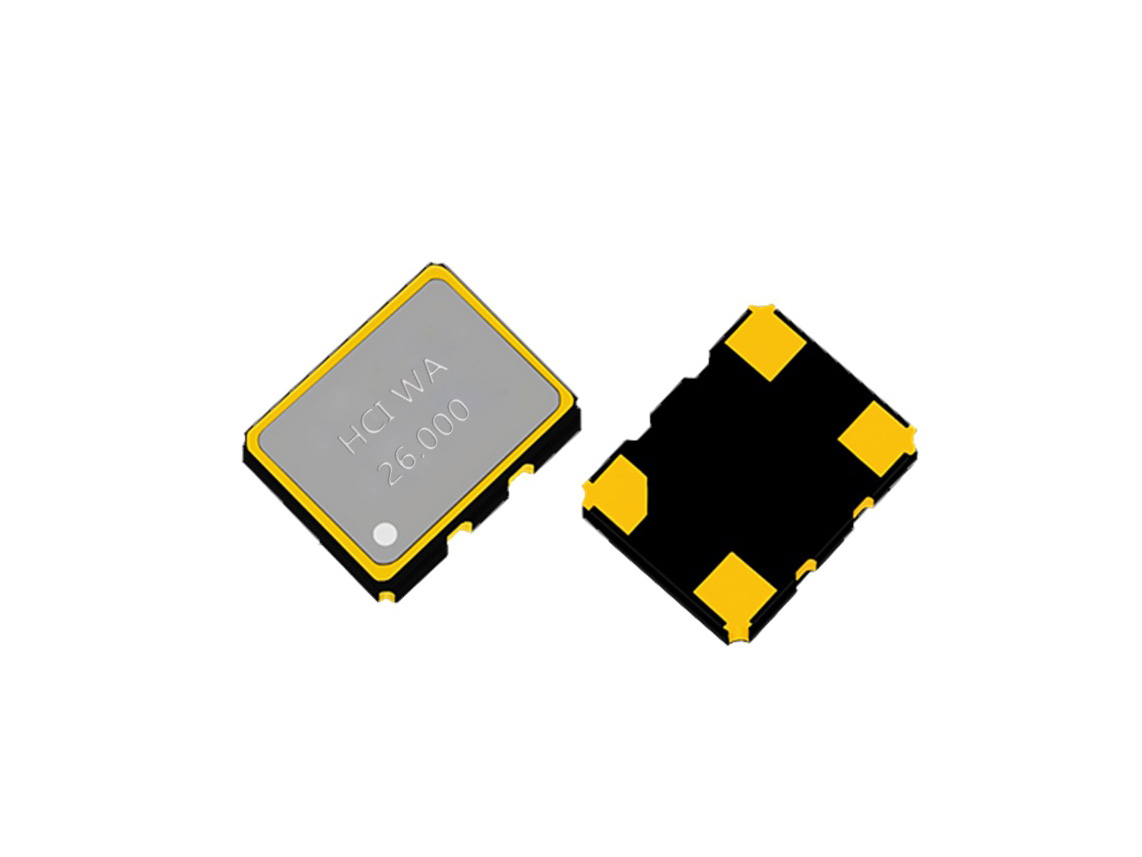

Product Photo

HCI PN

Package[mm]

FEATURES/Output

Frequency Range

Supply voltages

Operating temperature

Environmental Compliance

SPEC FILE

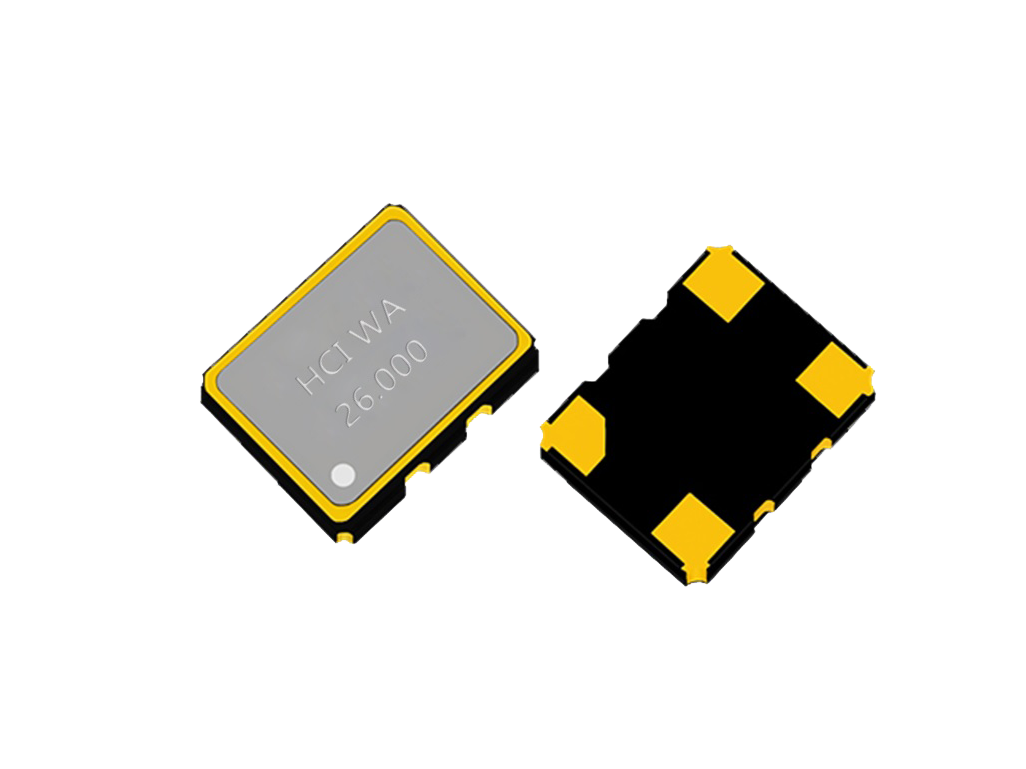

2. TC32H4
3. 3.2x2.5
4. TCXO/HCMOS
5. 9.5MHz ~ 60MHz
6. 1.8V to 3.3V
7. ±2.5ppm，5.0ppm，±10ppm
  –40℃ to +85℃，-40℃to +90℃，–40℃ to +105℃
8. ▪ RoHS compliant,
  ▪ LEAD-FREE,
  ▪ HALOGEN-FREE
  ▪ REACH compliant.

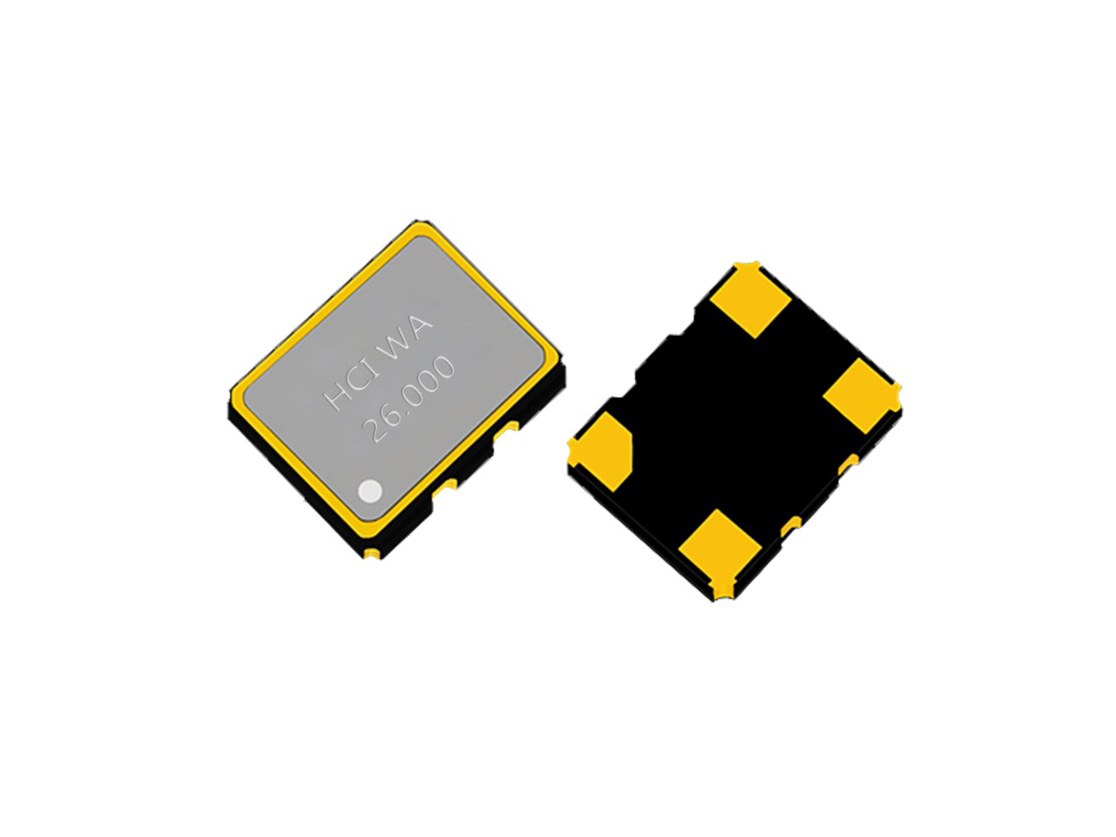

2. TC53H4
3. 5.0 x 3.2
4. TCXO/HCMOS
5. 10MHz ~ 52MHz
6. 1.8V to 3.3V
7. ±0.5ppm，±1.0ppm，1.5ppm，±2.0ppm，±2.5ppm
  –10℃ to +70℃，–30℃ to +85℃，–40℃ to +85℃
8. ▪ RoHS compliant,
  ▪ LEAD-FREE,
  ▪ HALOGEN-FREE
  ▪ REACH compliant.

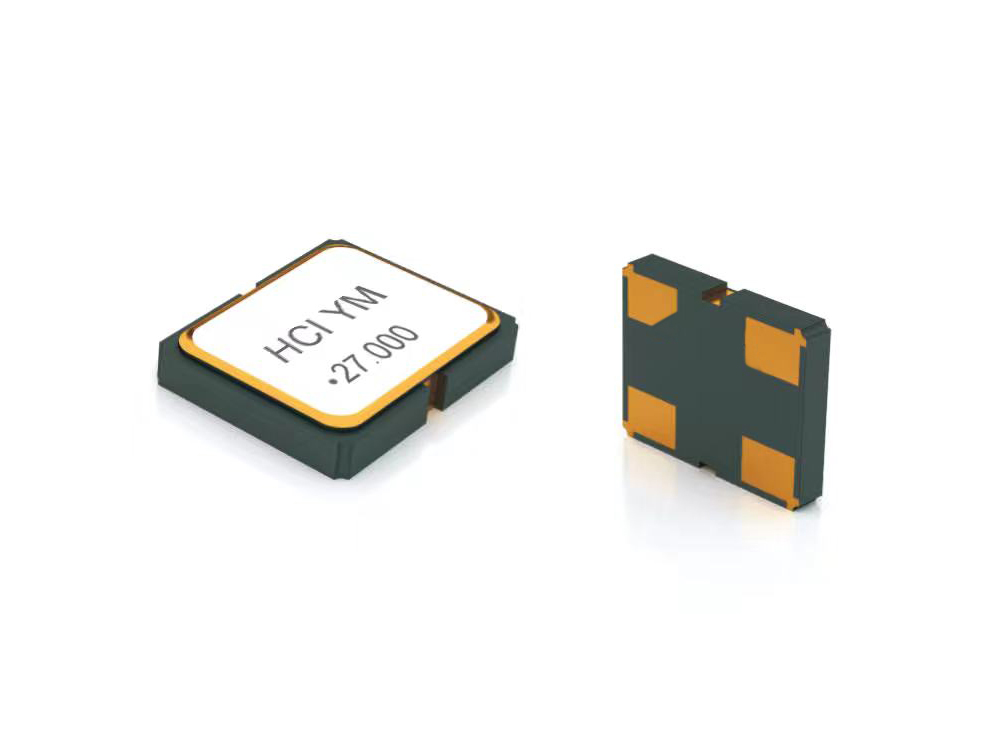

2. TC22S4
3. 2.5 x 2.0
4. TCXO/Sine wave
5. 10MHz ~ 55MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. ±0.5ppm to ±2.5ppm available
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. UC22S4
3. 2.5 x 2.0
4. VC-TCXO/Sine wave
5. 10MHz ~ 55MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. ±0.5ppm to ±2.5ppm available
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. TC32S4
3. 3.2 x 2.5
4. TCXO/Sine wave
5. 10MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. ±0.5ppm to ±2.5ppm available
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. UC32S4
3. 3.2 x 2.5
4. VC-TCXO/Sine wave
5. 10MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. ±0.5ppm to ±2.5ppm available
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪ REACH compliance monitored.
2. TC53S4
3. 5.0 x 3.2
4. TCXO/Sine wave
5. 10MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. ±0.5ppm to ±2.5ppm available
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪REACH compliance monitored.
2. UC53S4
3. 5.0 x 3.2
4. VC-TCXO/Sine wave
5. 10MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. ±0.5ppm to ±2.5ppm available
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪REACH compliance monitored.
2. TC75S4
3. 7.0 x 5.0
4. TCXO/Sine wave
5. 5MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. ±0.5ppm to ±2.5ppm available
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪REACH compliance monitored.
2. UC75S4
3. 7.0 x 5.0
4. VC-TCXO/Sine wave
5. 5MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. ±0.5ppm to ±2.5ppm available
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪REACH compliance monitored.
2. TT75S4
3. 7.0 x 5.0(STRATUM 3)
4. TCXO/Sine wave
5. 5MHz ~ 30MHz
6. 3.3V or 5.0V
7. Stability 0.28ppm over operating temperature typically -20℃ ~ +70℃ or –40℃~+85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪REACH compliance monitored.
2. UT75S4
3. 7.0 x 5.0(STRATUM 3)
4. VC-TCXO/Sine wave
5. 5MHz ~ 30MHz
6. 3.3V or 5.0V
7. Stability 0.28ppm over operating temperature typically -20℃ ~ +70℃ or –40℃~+85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪REACH compliance monitored.
2. TT75SA
3. 7.0 x 5.0(STRATUM 3)
4. TCXO/Sine wave
5. 5MHz ~ 30MHz
6. 3.3V or 5.0V
7. Stability 0.28ppm over operating temperature typically -20℃ ~ +70℃ or –40℃~+85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪REACH compliance monitored.
2. UT75SA
3. 7.0 x 5.0(STRATUM 3)
4. VC-TCXO/Sine wave
5. 5MHz ~ 30MHz
6. 3.3V or 5.0V
7. Stability 0.28ppm over operating temperature typically -20℃ ~ +70℃ or –40℃~+85℃
8. ▪ Fully RoHS compliant
  ▪ LEAD-FREE
  ▪ HALOGEN-FREE
  ▪REACH compliance monitored.
2. TS14S6
3. 14 x 9
4. TCXO/Sine wave
5. 1.25MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. Stabilities from ±0.5ppm to ±2.5ppm
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. RoHS compliant
2. US14S6
3. 14 x 9
4. VC-TCXO/Sine wave
5. 1.25MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. Stabilities from ±0.5ppm to ±2.5ppm
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
2. TS14H6
3. 14 x 9
4. TCXO/HCMOS
5. 1.25MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. Stabilities from ±0.5ppm to ±2.5ppm
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. RoHS compliant
2. US14H6
3. 14 x 9
4. VC-TCXO/HCMOS
5. 1.25MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. Stabilities from ±0.5ppm to ±2.5ppm
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. RoHS compliant
2. TD14S4
3. 20 x 13
4. TCXO/Sine wave
5. 1.25MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. Stabilities from ±0.5ppm to ±2.5ppm
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. RoHS compliant
2. UD14S4
3. 20 x 13
4. VC-TCXO/Sine wave
5. 1.25MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. Stabilities from ±0.5ppm to ±2.5ppm
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. RoHS compliant
2. TD14H4
3. 20 x 13
4. TCXO/HCMOS
5. 1.25MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. Stabilities from ±0.5ppm to ±2.5ppm
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. RoHS compliant
2. UD14H4
3. 20 x 13
4. VC-TCXO/HCMOS
5. 1.25MHz ~ 50MHz
6. 2.5V, 3.0V, 3.3V and 5.0V
7. Stabilities from ±0.5ppm to ±2.5ppm
  –10℃ ~ +60℃, –20℃ ~ +70℃,
  –30℃ ~ +85℃, –40℃ ~ +85℃
8. RoHS compliant
