以服务为基础，以质量为生存，以科技求发展

石英晶体谐振器石英晶体振荡器电压控制震荡器温补晶体振荡器恒温晶体振荡器滤波器及谐振器

石英晶体谐振器是利用石英晶体的压电效应制造的无源频率元器件，在电路中与IC等元件搭配产生电路的基准频率。HCI可以提供各种封装尺寸及各种频点和精度的产品，广泛应用于通讯、工控、IT、医疗、精密仪器及军工等领域。

Product Photo

HCI PN

Package LxW[mm]

Frequency Range

Product Features

Environmental Compliance

SPEC FILE

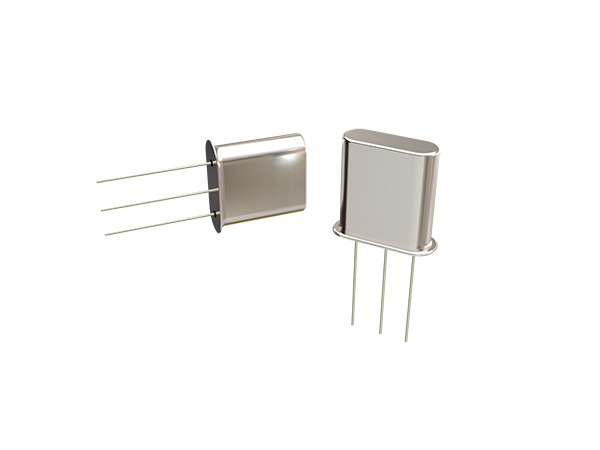

2. CFUMT3
3. 7.9x3.3x8.0
  7.9x3.3x5.8
4. 10-45MHz
5. Low Insertion loss
  High selectivity
  Shock Resistant , High reliability
6. RoHS compliant Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored

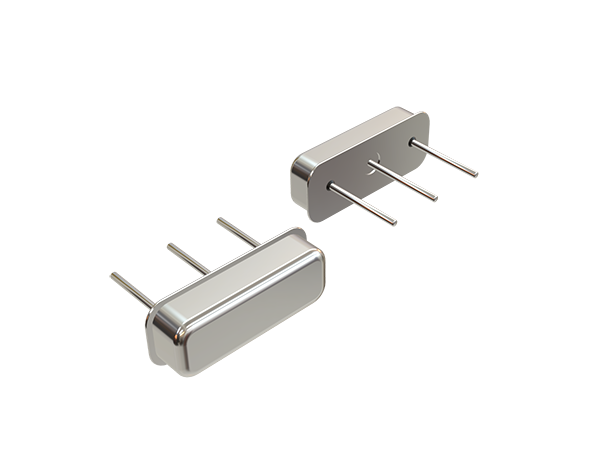

2. CF49T3
3. 11x4.7x13.5
  11x4.7x11.0
4. 7.8-60MHz
5. Low Insertion loss
  High selectivity
  Shock Resistant , High reliability
6. RoHS compliant Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored

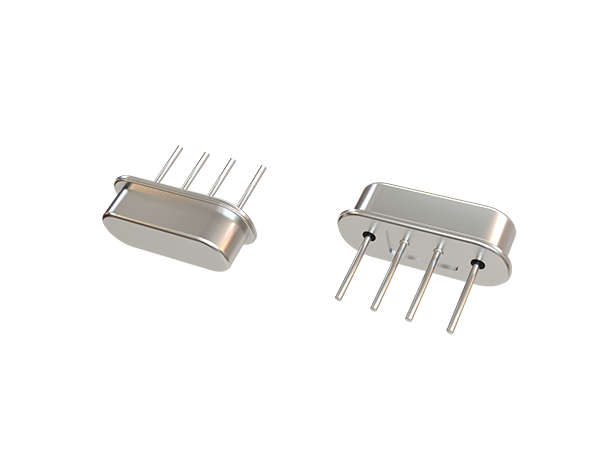

2. CFMH4
3. 11 x 8.5 to
  18 x 12
4. 7.8-60MHz
5. Low Insertion loss
  High selectivity
  Shock Resistant , High reliability
6. RoHS compliant Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored

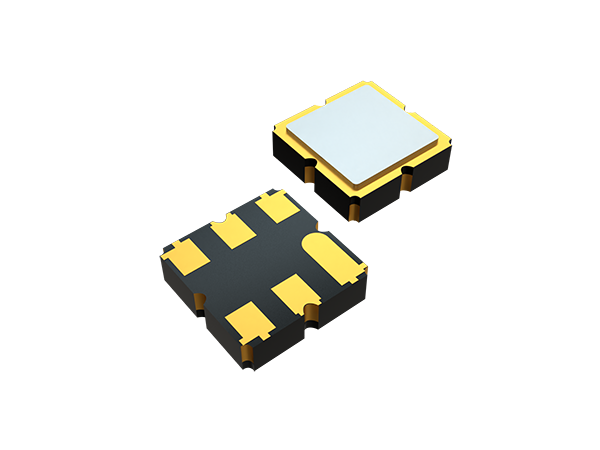

2. CF75M6
3. 7.0x5.0x1.3
4. 21.4/21.7/45MHz
5. Low Insertion loss
  High selectivity
  Shock Resistant , High reliability
6. RoHS compliant Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored

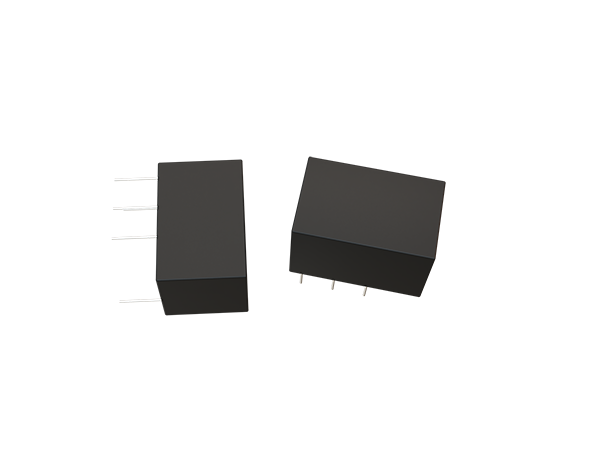

2. HCCF1
3. 6.5 x 6.0 x 4.0
  8.0 x 8.0 x 7.0
  9.5 x 6.3 x 6.5
  11.0 x 8.0 x 7.0
4. 455kHz
5. Highly selective for narrowband communication Compact structure and small size Electrical performance is not affected by external electromagnetic interference Suitable for matching with different Ics
2. HCCF2
3. 6.5 x 6.0 x 4.0
  6.5 x 11.9 x 3.0
4. 450kHz-455kHz
5. Highly selective for narrowband communication Compact structure and small size Electrical performance is not affected by external electromagnetic interference Suitable for matching with different Ics

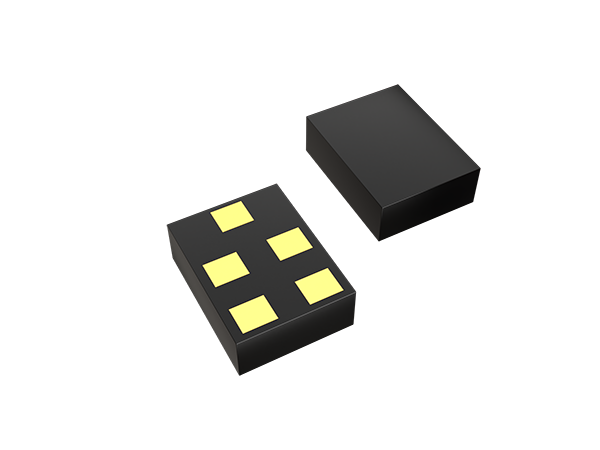

2. SF10S5
3. 1.1 x 0.9 x 0.5
4. 800-2605MHz
5. CSP process with chip scale package
  Standardization of small size
  Good stability and high reliability
  Mainly used in GPS navigation
  TDD/FDD communication and artificial intelligence chips
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored

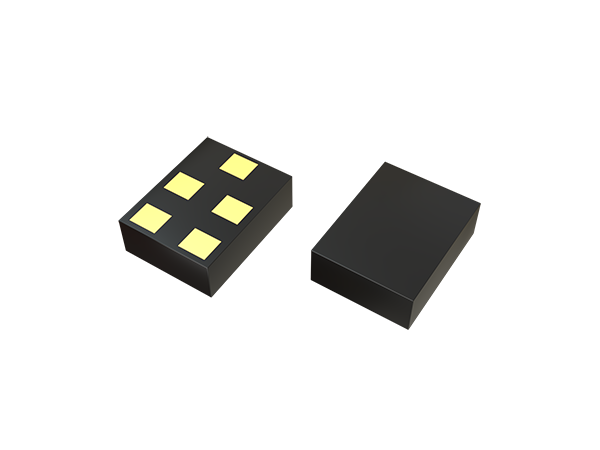

2. SF11S5
3. 1.4 x 1.1 x 0.6
4. 800-2605MHz
5. CSP process with chip scale package
  Standardization of small size
  Good stability and high reliability
  Mainly used in GPS navigation
  TDD/FDD communication and artificial intelligence chips
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored
2. SF21S5
3. 2.0 x 1.5 x 0.6
4. 800-2605MHz
5. CSP process with chip scale package
  Standardization of small size
  Good stability and high reliability
  Mainly used in GPS navigation
  TDD/FDD communication and artificial intelligence chips
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored

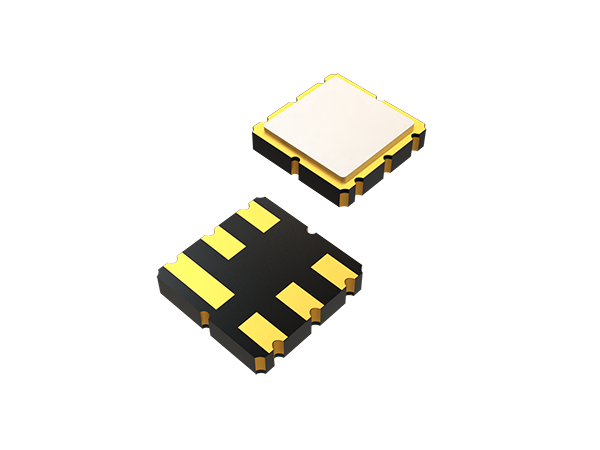

2. SF33M6
3. 3.0 x 3.0 x 1.25
4. 300-2605MHz
5. Low-loss SAW component
  Low amplitude ripple
  Sharp rejections at both out-bands
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored
2. SF44M6
3. 3.8 x 3.8 x 1.5
4. 100-1000MHz
5. Low-loss SAW component
  Low amplitude ripple
  Sharp rejections at both out-bands
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored
2. SF55M8
3. 5.0 x 5.0 x 1.5
4. 100-1000MHz
5. Low-loss SAW component
  Low amplitude ripple
  Sharp rejections at both out-bands
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored
2. SFD11
3. 8.4 x 3.5 x 2.9
4. 100-1000MHz
5. IF filter for DSB receivers
  Constant group delay
  Improved ESD capability by integrated shunt resistors
  Optimized group delay time
  Stable performance
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored
2. SFF11
3. 11.0 x 4.5 x 3.2
4. 100-1000MHz
5. IF filter for DSB receivers
  Constant group delay
  Improved ESD capability by integrated shunt resistors
  Optimized group delay time
  Stable performance
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored
2. SFTO39
3. Φ9.15 X 3.15
4. 100-1000MHz
5. IF filter for DSB receivers
  Constant group delay
  Improved ESD capability by integrated shunt resistors
  Optimized group delay time
  Stable performance
6. RoHS compliant
  Lead-Free
  Halogen-Free
  REACH compliance verified, continusly monitored
